Performance Upgrades

FORKS

Please note - No additional charge will incur for fitting any of these upgrades when installed as part of a full service. When performance upgrades are installed all factory services will be upgraded to hyperformance service at no extra charge. Each item can also be purchased for self instalment.

VORSPRUNG LUFTKAPPE

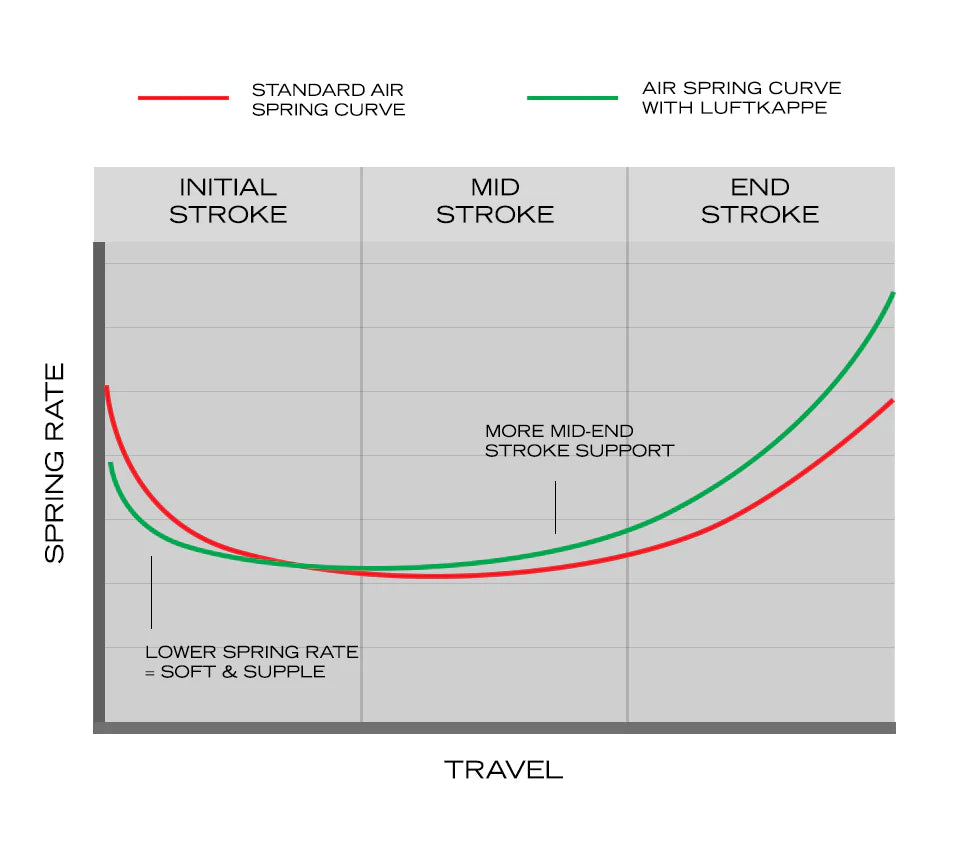

Using the knowledge gained from the ‘Corset’ air can the guys at Vorsprung have created the ‘Luftkappe’. This air piston upgrade will increase the negative volume in your fork providing greater small bump sensitivity, suppleness and traction without compromising the forks middle and end stroke support. For more details check out the Pinkbike review.

Compatibilty

36 Float EVOL (2018+) or 36 Float NA2 2015 – 2017

The Vorsprung ‘Luftkappe’ upgrade is available from NSD as follows

Vorpsrung ‘Luftkappe’ for Self-installation

Total cost 36 EVOL Kit $125

Total cost 36 NA2 2015 – 2017 Kit $130

Or we can install your ‘Luftkappe’ during a service with no extra charge for installation

NSD Hyperformance Service $240 + ‘Luftkappe’ cost (Recommended)

Available for RockShox Pike, Lyrik and Yari.

Factory Service $195 + ‘Luftkappe’ cost

To book your fork in for this upgrade please click here and write the upgrade title in the ‘notes’ area at the bottom.

VORSPRUNG FRACTIVE UPGRADE

Looking to give your FIT4 Factory damper the edge? Vorsprung have the answer with their ‘Fractive’ tune assembly. The Tractive upgrade gives you a specialised compression piston with multiple tune options so we can tailor the fork to your rider weight and needs. Your three position switch is also transformed into a true three position High Speed Compression (HSC) adjuster. Whilst your Low Speed Compression (LSC) adjuster will be effective in all HSC modes. This combination of specific internal tuning and external adjustment will give riders a superior fork. For further information and compatibility click here

The Vorspung Fractive upgrade from NSDynamics includes

  • Vorsprung Fractive tune kit
  • Tune to rider weight / riding style
  • NSD ‘Hyperformance’ service
  • Compatible with Fox 32, 34, 36 and 40 forks equipped with a FIT4 Factory damper
  • Total cost $325

To book your fork in for this upgrade please click here and write the upgrade title in the ‘notes’ area at the bottom.

Self install kit available, $130

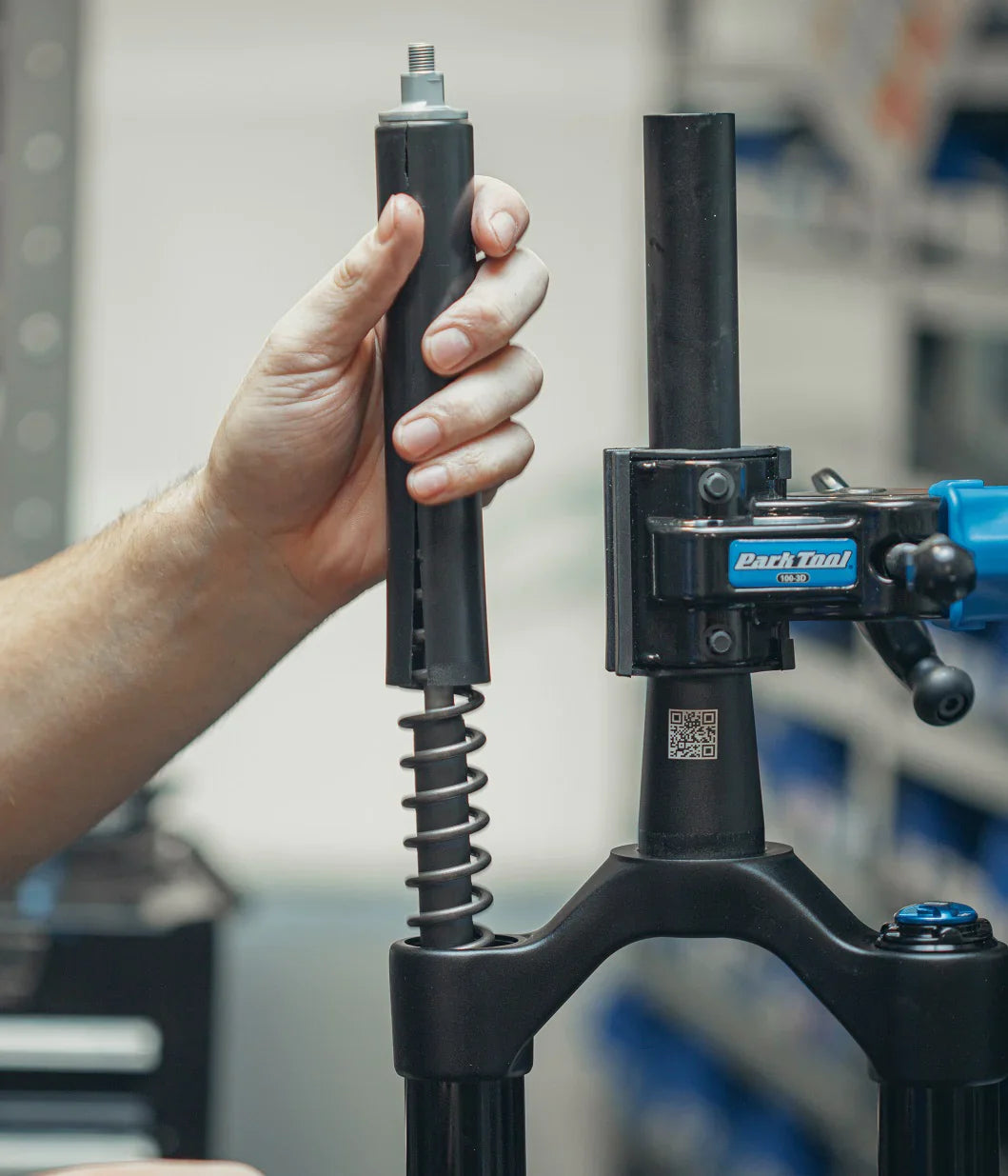

Vorsprung Smashpot (Fork Coil Conversion System)

Presenting the Smashpot - a fork coil spring conversion system for singlecrown enduro forks, featuring externally adjustable hydraulic anti-bottoming technology to deliver precisely the amount of bottoming resistance you need.

Compatibility

- Fox 36 (2015+) and 36 Rhythm, Marzocchi Z1 (2019+), and Rockshox Pike/Lyrik/Yari/Revelation (35mm) forks.

- Features 130-180mm travel, internally adjustable using included spacers. (Note - max permissible travel for your fork is determined by the fork manufacturer and may be less than 180mm)

There are a few other advantages of running the Smashpot. If you want to adjust your travel this can be done without purchasing additional parts, travel adjustments are done via internal spacers.
Also if you want to take your kit to another brand of fork, for example taking it out of a Rockshox Lyrik and fitting it to a Fox 36 there are only two small parts required for an approximate cost of $70, no need to purchase a complete new kit.



A wide range of springs are available to suit riders in the range of 45-125kg.



CLICK HERE FOR SPRING RATE CHART

Contact us directly for availability and pricing with your spring rate and fork model.



FAST SUSPENSION CHARGER 3-WAY KIT

Combining the best traits of the FAST CO3 cartridge and ‘Charger’ cartridge into one great damper. The FAST Suspension ‘3-way charger kit’ overhauls and upgrades your Rockshox Charger damper giving you better, more advanced  suspension damping.  A new compression and rebound shim stack is installed, externally adjustable with 24 clicks of independent high speed compression, low speed compression and rebound adjustment. This gives you the range you need to dial the upgraded shim stack in to your needs and wants as a rider. This is all tied in with our NSD exclusive ‘Hyperformance’ service, reducing friction and giving you one serious piece of suspension.

The Fast Suspension Charger ‘3-way kit’ upgrade for Lyrik & Pike forks from NSD includes

  • FAST Suspension Three Way Charger kit
  • NSD ‘Hyperformance’ service
  • Three Way Kit installation – FREE
  • Compatible with Charger 1 damper only.

Total part cost $550

To book your fork in for this upgrade please click ‘hereand write the upgrade title in the ‘notes’ area at the bottom.



NSD ‘SOFT TOUCH’ AIR SPRING UPGRADE

Designed, tried and tested in house this NSDynamics exclusive upgrade will significantly increase the performance of your air spring. Small bump sensitivity is greatly improved on your fork whilst giving you the mid and end stroke support that you need. Value for money upgrades on your Pike don’t get any better than this!

The ‘Soft Touch’ upgrade for the Rockshox Pike includes
  • NSD exclusive ‘Soft Touch’ negative air upgrade
  • NSD ‘Hyperformance’ service

Total cost $295

Soft touch. $40 on top of a service. Available for non Debon air pikes.





To book your fork in for this upgrade please click here and write the upgrade title in the ‘notes’ area at the bottom.

Testimonial
‘The fork no longer dives after a few progressive hits. It stays high in its travel and rails berms without the slightest feeling of washing out. My only regret is not getting this upgrade the day I bought the fork.’ - Daniel Raciti

DVO DIAMOND RACE PREP

The ‘race prep’ upgrade reduces the friction required to initiate your forks stroke, giving your Diamond an even more supple and responsive feel. The lower leg bushing size is refined to your stanchions to make the forks action as smooth as possible. Premium quality fluids are also used to ensure the best possible lubrication and damping.

The DVO Diamond ‘race prep’ from NSD includes
  • Refining of lower leg bushing size / alignment
  • Premium quality lubricants
  • Total cost $120

To book your upgrade in please click here and select the ‘Hyperformance’ upgrade option in the drop down menu.

Also available on a brand new fork at the time of purchase when purchased at NSD (+$80).

FOX EVOL AIR SPRING

The Fox Evol (extra volume for the negative chamber) air spring increases the negative volume of the air spring system. Increasing the negative volume will reduce the breakaway force required to get the fork moving, increase the mid stroke support and retain the bottom out tuneability.

Available for $75 with any service.

ROCK SHOX DEBON AIR SPRING

Keeping up with the trend of high volume negative air springs, the Debon Air spring is an inexpensive upgrade to gain the associated  benefits for your Pike, Lyrik or Boxxer.

Available for $65 with any service.

SOFT TOUCH

Designed, tried and tested in house, this NSDynamics exclusive upgrade will significantly increase the performance of your air spring and bring it closer to the feel of a coil spring.

Small bump sensitivity is greatly improved whilst giving you the mid and end stroke support that you need. Value for money upgrades don’t get any better than this.
Available on all pre Debon air Pikes and Lyriks for $40 on top of any service.





SHOCKS

Please note - No additional charge will incur for fitting any of these upgrades when installed as part of a full service. When performance upgrades are installed all factory services will be upgraded to hyperformance service at no extra charge. Each item can also be purchased for self instalment.

VORSPRUNG ‘TRACTIVE’

Rock Shox Only*

With over seven years in development the ‘Tractive’ tuning system has a wealth of time, research and testing behind it.  Teaming up with engineer’s from one of the worlds most advanced mathematical computing companies  Vorsprung have created a one of a kind tuning system. Tunes are created specifically for your rider weight, bike, terrain and rider preference. Riders will experience greater support, predictability, compliance and traction with a ‘Tractive’ tuned shock. Riders will also get more effective use out of their three position compression lever with evenly spaced settings. This upgrade is installed strictly in house only at NSDynamics as an ‘Elite Tuning Partner’ of Vorsprung Suspension.

The Vorsprung ‘Tractive’ upgrade at NSDynamics includes;
  • Vorsprung ‘Tractive’ tuning kit
  • ‘Tractive’ tune specific to your needs
  • Factory Service

Total cost $380 includes the tractive tuning kit and Hyperformance service

To book your shock in for this upgrade please click here and write the upgrade title in the ‘notes’ area at the bottom.

SPRINGS

With coil sprung shocks becoming evermore popular on mountain bikes these days its important to get the right coil for your needs. NSDynamics has a large variety of different springs to suit a vast array of bikes and riders. Standard steel springs, lightweight steel, adjustable rate, progressively wound, 25lb increment, 50lb increment, Cane Creek, Ohlins, DVO, Fox, Rock Shox, SAR and even a few titanium springs. NSDynamics has a coil spring inventory of over 400 springs and can supply the best for your needs.
Sprindex Adjustable coil spring
Fine tune your spring rate on the fly with this nifty little invention from Sprindex. Adjustable spring rate (not preload) by adjusting the collar to remove the amount of active coils. By reducing the amount of active coils in a spring it will increase the spring rate and vice versa. NSDynamics is proud to be the Australian distributor for Sprindex springs and has good stock. Trade enquiries welcome.
$195
Please see https://sprindex.com if you require further technical information.
Cane Creek Valt Progressive Springs.
With a lot of bikes on the market claiming to only be suitable for use with air shocks doesn’t mean you need to miss the benefits of running a coil sprung shock. Cane Creek have come to the party with their progressively wound coil springs. $150.

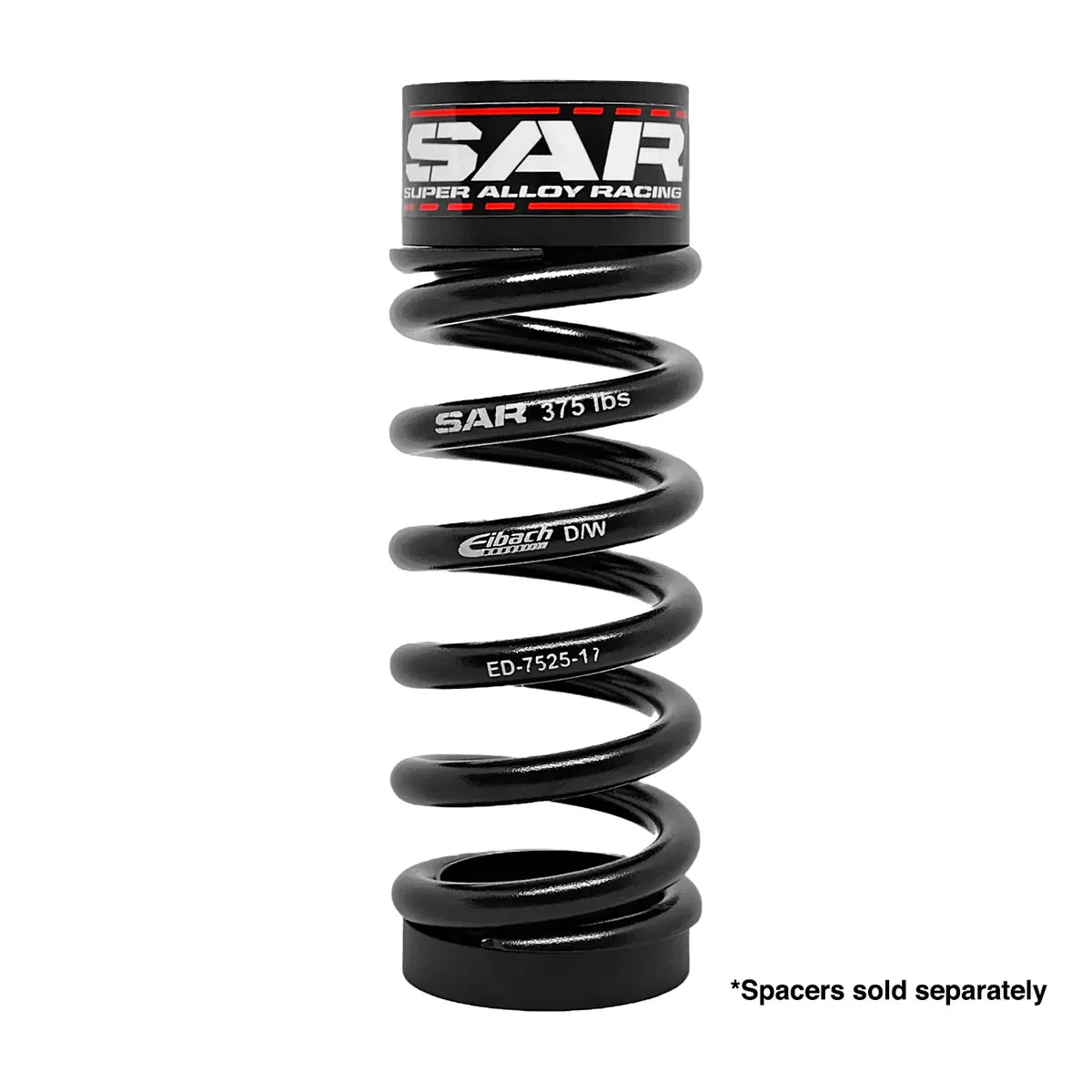

SAR

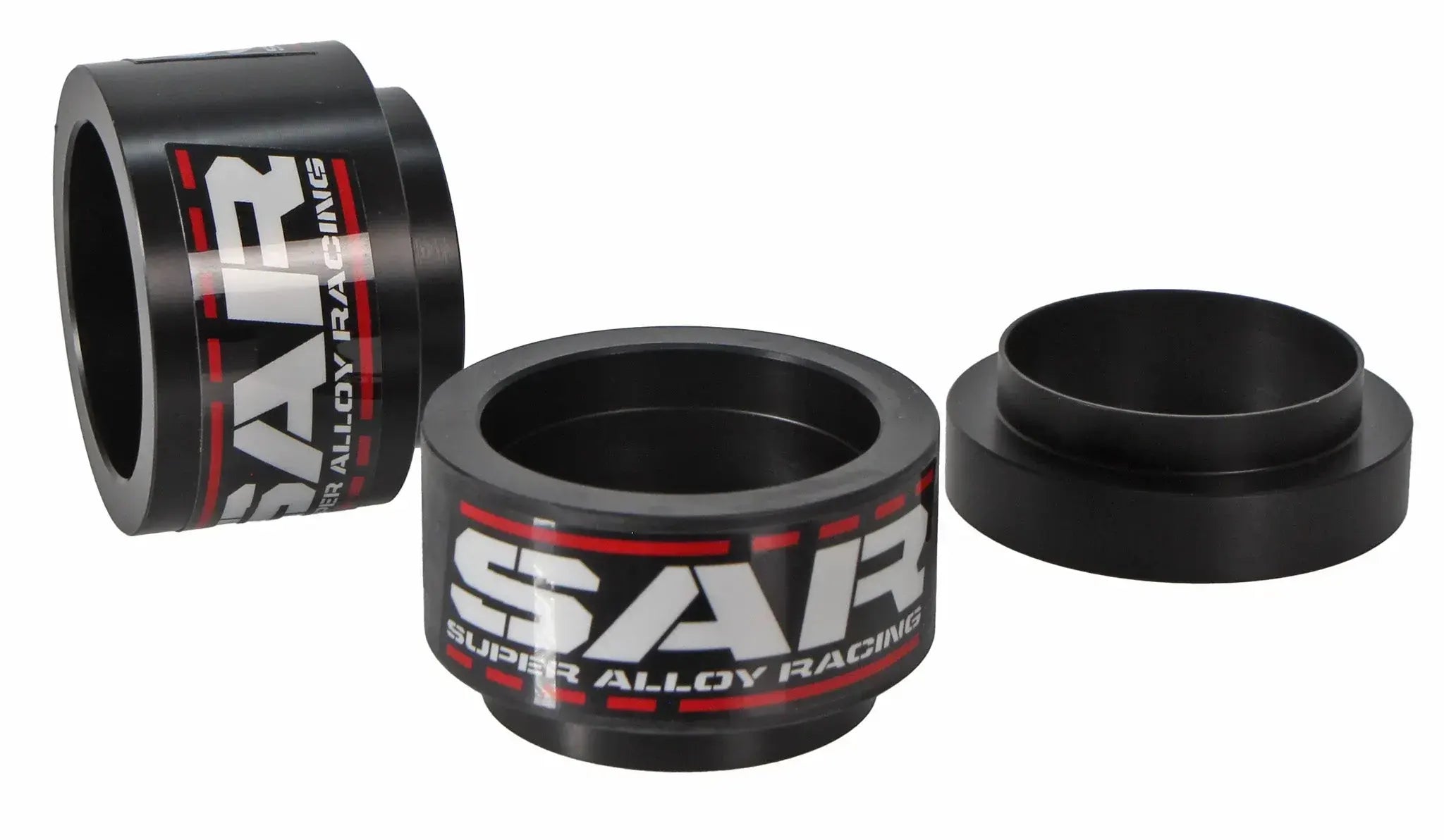

In order to get the most out of your suspension it is crucial that you have the right spring rate for your rider weight and bike. SAR race springs are of exceptionally high quality. Made from a light weight alloy and available in accurate 25lbs increments they quickly became popular on the world cup circuit. To ensure they are as light as possible the springs have a small free length, utilising a light ‘POM’ spacer to ensure contact with the preload collar. POM spacers to suit your shock included free with purchase of a spring.

Please see https://superalloyracing.com/products for more information.
$195





CUSTOM VALVING

Custom valving is available for a range of different suspension models.

Please send an email with your requests for more information.

Please be sure to include Bike, shock model, rider weight and a brief description of what you’re looking for to get started.



If you are dropping your suspension on to us please ensure it is removed from the bike. NSDynamics does not deal with complete bikes sorry.

FREE return express freight with any full service, Fork, Shock or Seatpost!
