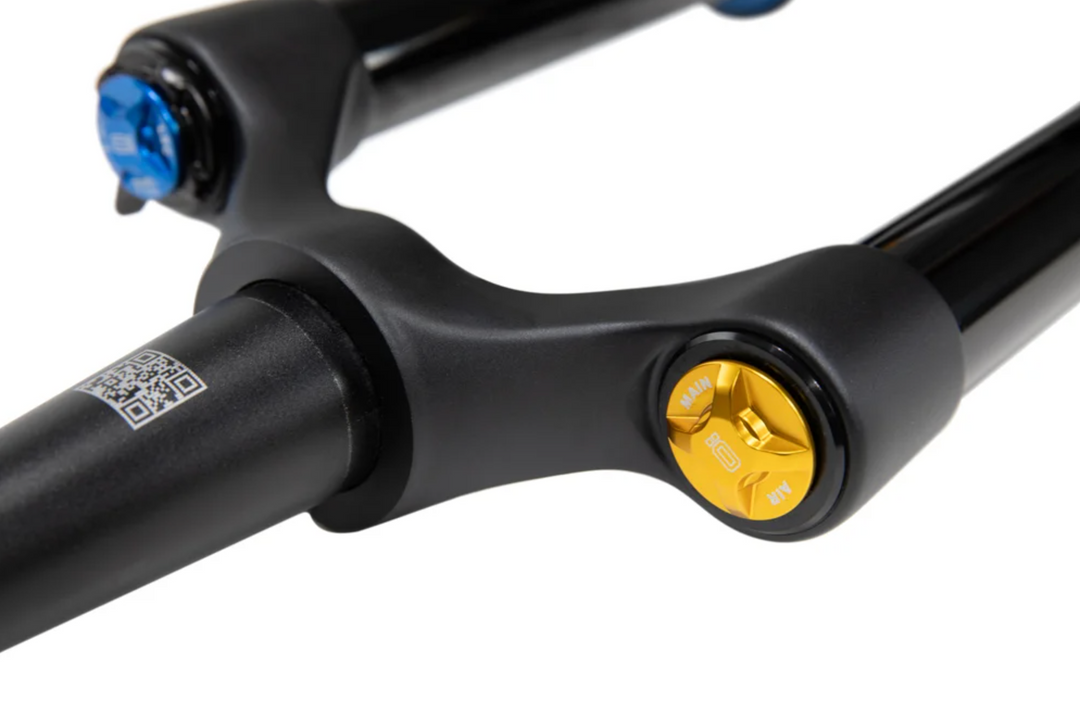

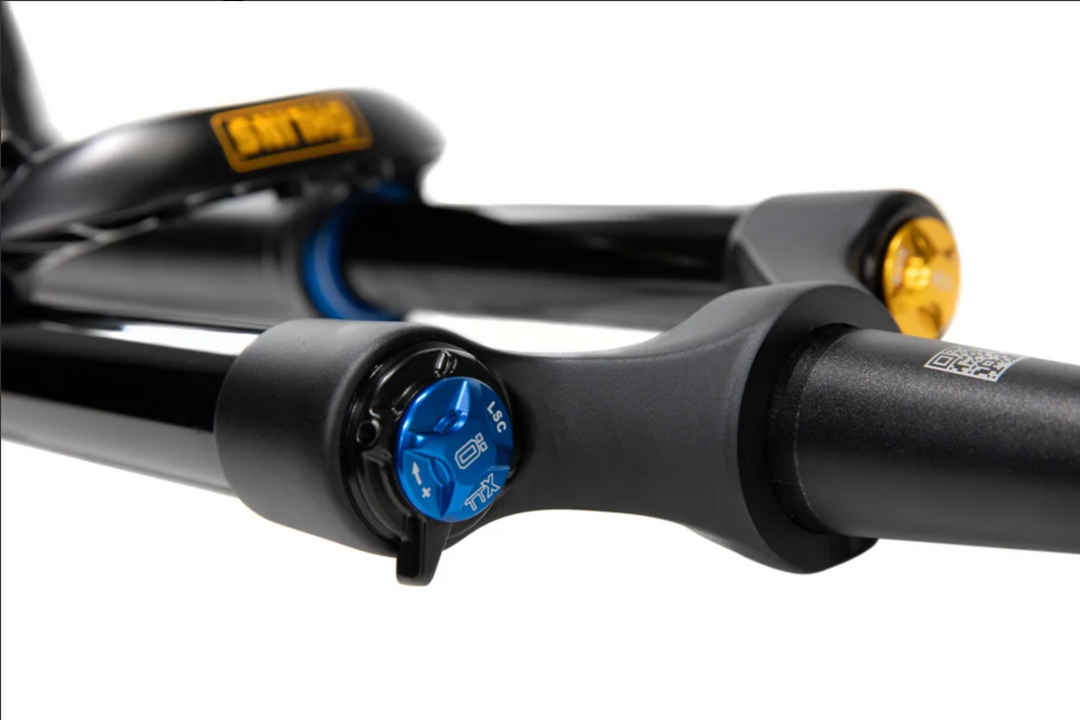

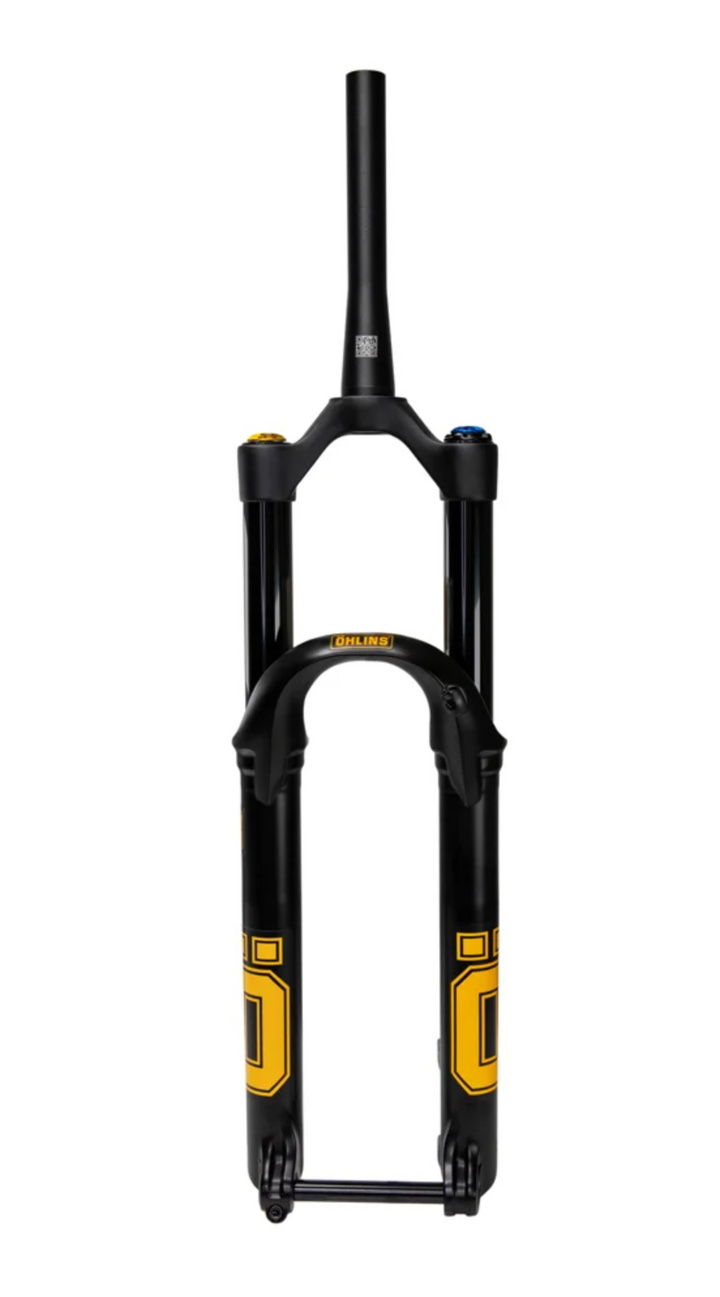

Ohlins RXF36 m.3 Air Black 29" 44mm Offset

The Ohlins RXF36 m.3 Air Fork is a lightweight, highly progressive single-crown suspension fork designed for demanding trail riders seeking the perfect balance of traction, control, and comfort. Featuring an all-new chassis built around the proven TTX18 cartridge, the RXF36 m.3 delivers ultra-sensitive tracking over small bumps while maintaining Ohlins' signature steering precision and predictable handling.

This fork incorporates increased internal bushing overlap and an optimised configuration for 140-160 mm of travel on 29" wheels (up to 170 mm for 27.5"). It also offers adjustable offsets of 38, 44, and 51 mm to match your frame geometry. The updated settings and reduced chassis friction enhance small bump sensitivity and comfort, while a new surface treatment on the stanchions improves ride smoothness and long-term performance.

The RXF36 m.3 provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. A floating axle design minimises friction, while the retuned twin piston, three-chamber air spring system allows precise tuning of progression and bottom-out support. The cartridge-based air spring also allows for easy conversion to a coil spring if desired.

Features

• TTX technology

• Fork travel: 140-160 mm (170 mm for 27.5")

• Independent spring system

• Independent damper system

• Retuned air spring system

• 36-mm stanchion tube

• 38-, 44-, and 51-mm offset

• Wheel size: 29" and 27.5"

• eMTB-approved

• Race-proven setting bank

• Prepared for coil spring

• Reduced chassis friction

• Floating 15x110 mm axle for minimum friction

• Weight: 2050 g (with bolts + axle)

• New surface treatment

• Enhanced sensitivity and comfort

• Reworked internals and design

Specifications

• Wheel size: 29" or 27.5"

• Travel: 140-160 mm (170 mm for 27.5")

• Stanchion diameter: 36 mm

• Offset: 38-, 44-, and 51-mm

• Axle: 15x110 mm Boost

• Damper: TTX18

• Spring: Air (cartridge-based)

• Adjustments: 16 clicks low-speed compression, 3 clicks high-speed compression, 16 clicks rebound

• Weight: 2050 g (with bolts + axle)

• Maximum rotor size: 203 mm

Compatibility
Designed for modern trail bikes and eMTBs with Boost hub spacing. Check fork length, offset, and axle-to-crown height for fitment with your specific frame.

Installation Notes
Professional installation recommended. Ensure correct steerer cutting, crown race pressing, and suspension setup for optimal performance and safety.
