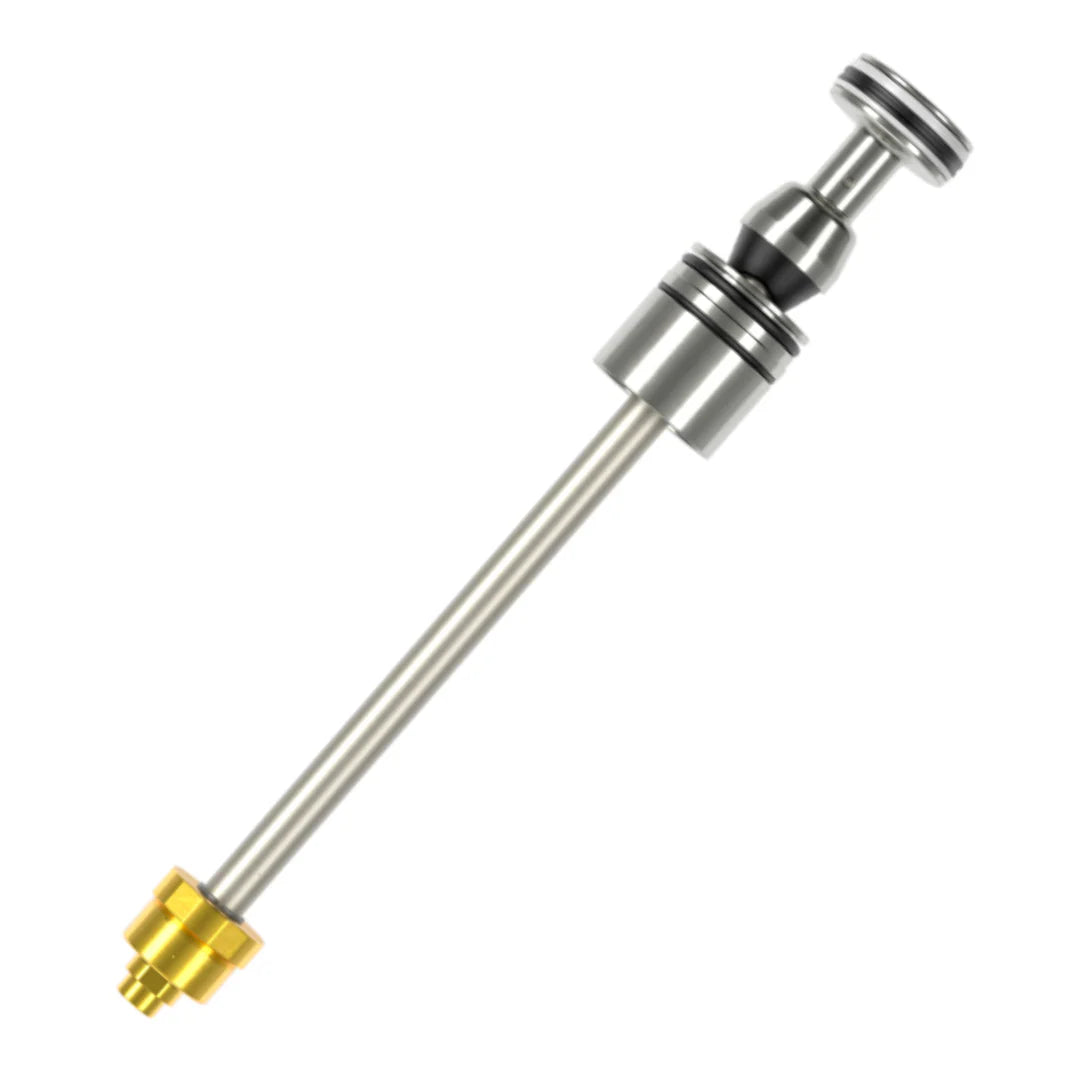

Pike C1 Air Spring Upgrade Kit DebonAir+ ButterCup

The Pike DebonAir+ Air Spring Upgrade Kit with ButterCup is a complete replacement air spring assembly for 2023 and newer Pike C1+ forks. It upgrades your fork with the latest DebonAir+ spring curve, offering improved mid-stroke support, better small-bump sensitivity, and more consistent ride height across changing terrain.

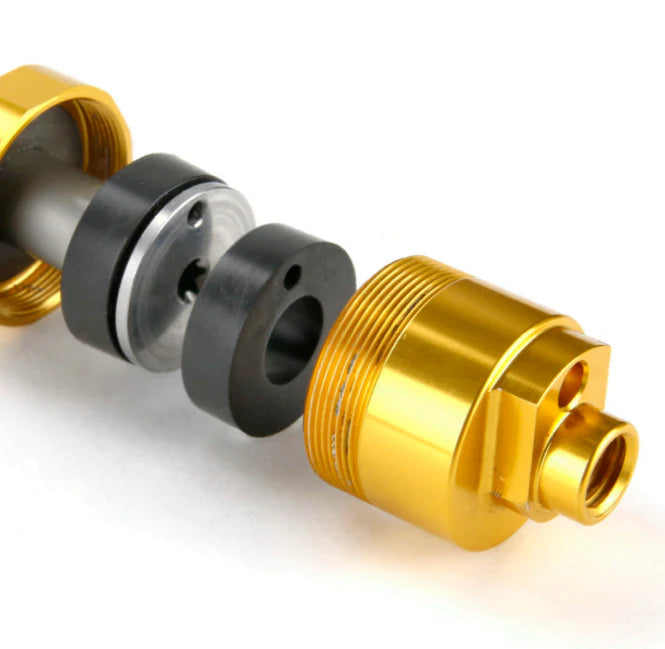

ButterCups are pre-installed at the base of the spring to reduce trail vibration and hand fatigue, giving you a quieter, more comfortable ride. The revised air spring design also allows for more precise tuning of sag and travel response, improving overall control and composure under load.

This air spring is also the required component when changing the travel length of any Pike C1+ fork.

Features

• Complete DebonAir+ air spring assembly

• Improved spring curve for mid-stroke support and bottom-out control

• Pre-installed ButterCup to reduce vibration and trail harshness

• Refined air volumes for better small-bump response

• More accurate sag setup and improved ride feel under braking

• Required component for travel changes

• Designed for trail and all-mountain use

Specifications

• Air spring type: DebonAir+

• Includes: Complete air spring assembly with ButterCup

• Travel options: Available in multiple lengths depending on fork model

• Intended use: Trail, all-mountain

• Weight: Varies slightly by travel length

• Mount: Direct replacement for Pike C1+ (2023 onwards)

Compatibility

Compatible only with 2023 and newer Pike C1+ forks using the DebonAir+ platform. Not suitable for earlier Pike models or other fork series. Ensure the correct travel option is selected for your bike’s geometry and frame clearance.

Installation Notes

Professional installation recommended unless experienced. Replacing the air spring requires full disassembly of the left leg. Use fresh lubrication and torque components to specification. After fitting, set air pressure and sag, and adjust volume spacers if needed. Best done during a lower leg service or when changing travel.
