Damper Upgrade Kit Charger3.1 Headvalve Shim Kit

The Charger 3.1 RC2 Damper Upgrade Kit is a simple yet effective way to bring your existing Charger 3.0 damper up to the latest Charger 3.1 spec. It swaps in a new high-flow piston and tuned shim stack for a broader, more refined compression response—giving you smoother low-speed feel off the top, plus firmer high-speed control when things get rowdy.

Whether you're running Pike, Lyrik, ZEB, Boxxer, or similar forks with the Charger 3 platform, this kit increases tuning range without replacing the entire damper. Includes the piston, IFP spring, shims and the head-valve tool needed to install it.

Features

• Converts existing Charger 3.0 / 3.0 RC2 damper to the new Charger 3.1 RC2 spec

• High-flow piston and revised shim stack for wider HSC and LSC range

• Improved low-speed sensitivity and firmer high-speed support

• Includes head-valve tool for installation

• Compatible with forks using Charger 3 platform (Pike, Lyrik, ZEB, Boxxer)

Specifications

• Model name: Charger 3.1 RC2 Piston Kit

• Compatibility: Charger 3 dampers in Pike C1+ (2023+), Lyrik D1+ (2023+), ZEB A1+ (2021+), Boxxer D1+ (2024+)

• Adjustment retained: High-speed compression, low-speed compression, low-speed rebound

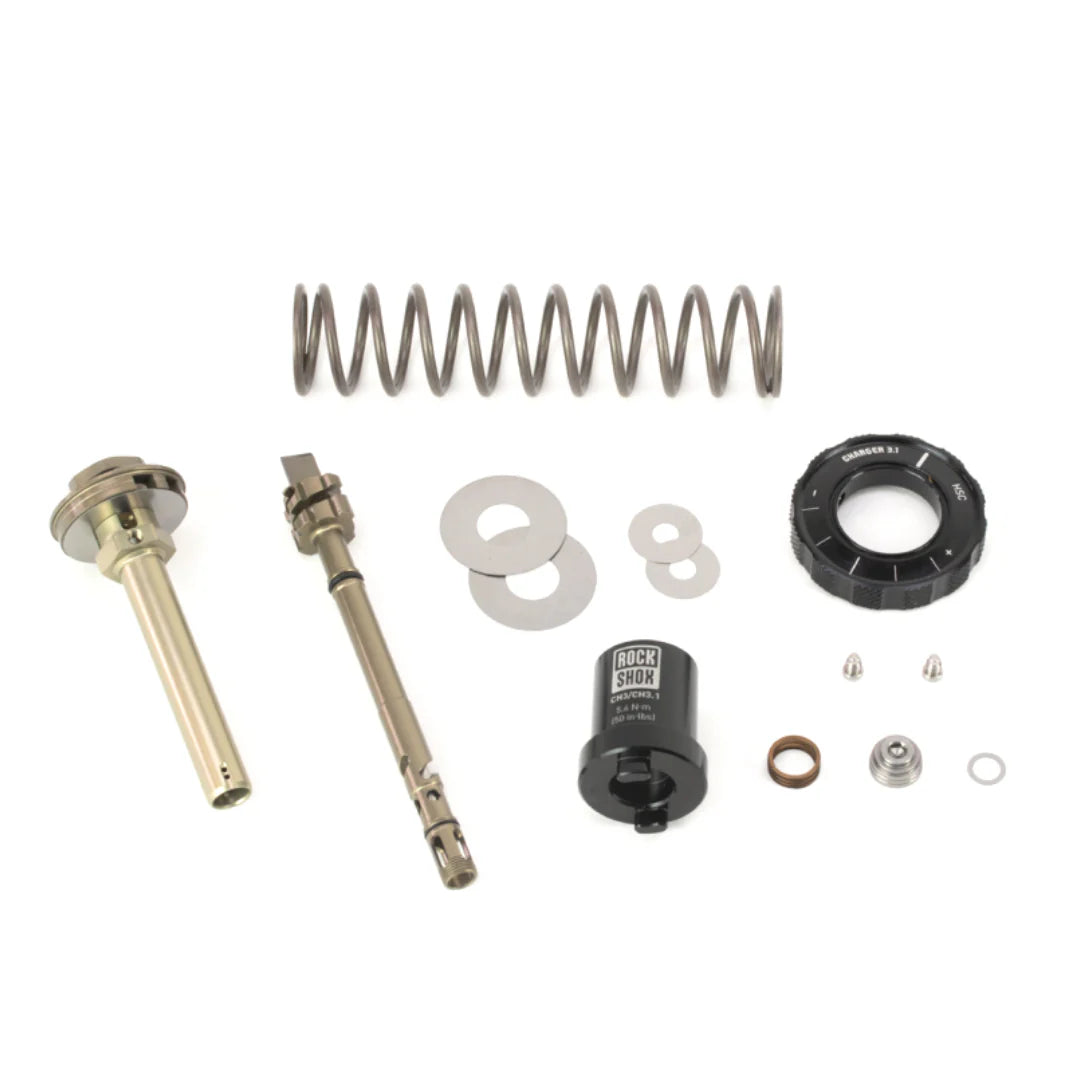

• Includes: piston assembly, internal floating piston spring, tuning shims, head-valve tool

• Weight: Minimal change from Charger 3 (kit only; damper remains same overall weight)

• MSRP: ~£70–85

Compatibility

Works with forks that originally ship with the Charger 3 or 3.0 RC2 damper. Confirm that your fork model and year match one of the supported platforms before ordering.

Installation Notes

Professional or capable home installation recommended—correct piston seating and shim alignment is critical. Kit swap can be done during a normal 200‑hour service. After install, fine-tune compression and rebound clicks to taste before riding.
